Italian Engineering Excellence
Explore the exceptional range of Antonio Carraro Tractors, designed to maximize efficiency and performance on your farm.
Maximum Protection Warranty

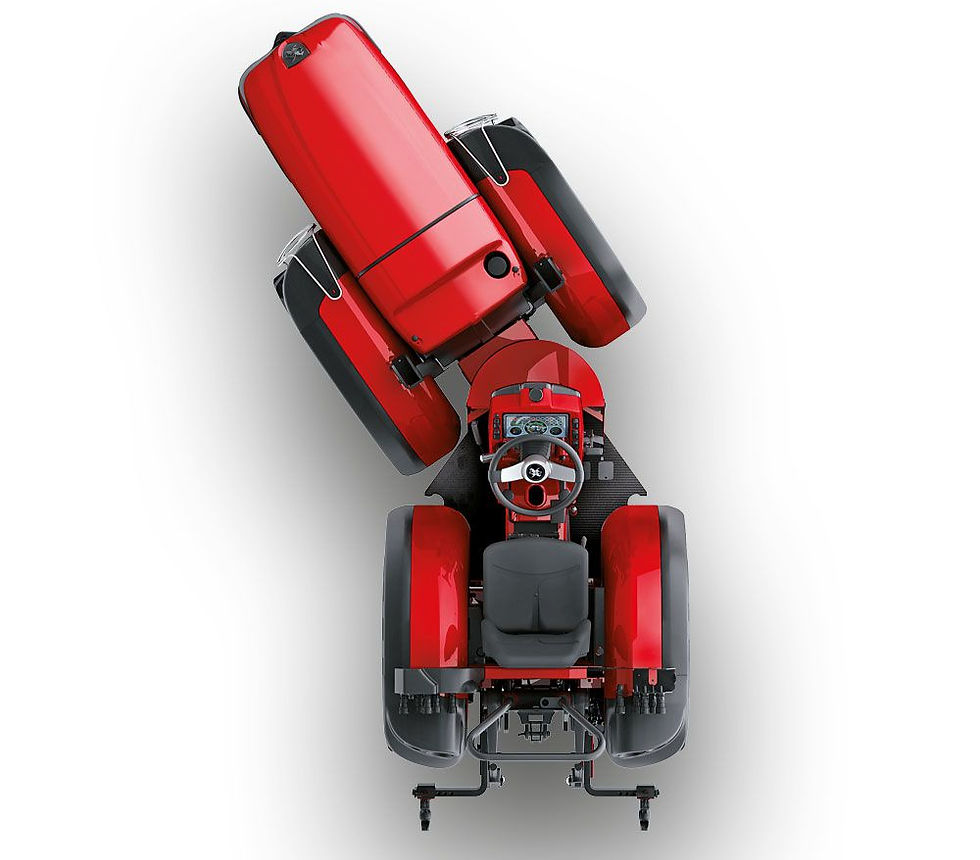

Advanced Articulation
Full Chassis Oscillation
Front Lift & PTO Options
Some of our line up

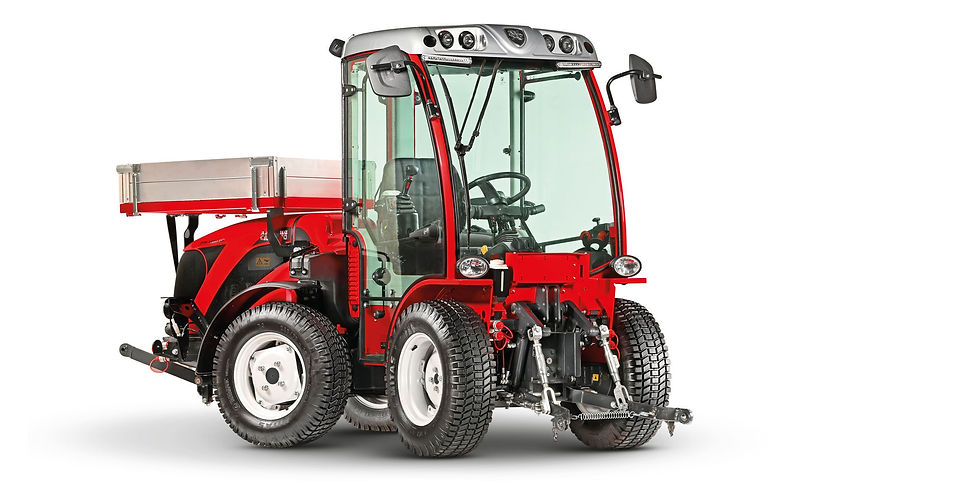

SP 4800
Compact Cab utility tractor
Power: 38,7 HP
Engine: YANMAR - Supercharged direct injection diesel common rail ,Turbo - Stage 5 - 3 Cylinders - 1568 cc
Transmission: Hydrostatic with hydraulic control
Weight: 1430 -1540 (Kg)
Mach 4 R
Articulated, Reversible, Quadtrack 4WD tractor
Power: 54.6 kW / 74.2 hp - 2400 rpm
Engine: KUBOTA - 4 Cylinders - 16 Valves - TURBO Stage 5 - Common rail - 3769 CC
Transmission: 32-speed synchronized gearbox: 16 forward + 16 reverse gears with synchronized shuttle
Weight: With roll bar (Kg): 3200 | With cab (Kg): 3380
AV / AV-L Series
Heavy Duty Specialized Vineyard Tractor
Power: 55 - 103 hp
Engine: 28 SCRT (Adblue) - Cylinders/valves 4/ 2 - Stage V - Nm @ rpm 358 @ 1500
Transmission: Carraro/ T100+30, Can be equipped 3-hydraulic pumps for the most demanding implement configurations
Weight: AV 2680 (Kg) | AV L 2740 (Kg)
Lift Capacity: 2600 (Kg)
Tigrecar 5800 PC
Heavy Duty Tractor-Chassis Utility Transporter
Power: 51.5 - 66 hp
Engine: YANMAR - Diesel with common rail direct injection, with turbo and intercooler 4 Cylinders - 16 Valves Stage 5
Transmission: Mechanical gearbox with 16 speeds, 8 forward and 8 reverse
Weight: With loading bed PL (Kg): 1970 to 4500
Cargo Capacity: 4500 (Kg)
Panther 26H
Versatile 4WD Super-Compact
Power: 25 hp
Engine: Mitsubishi Diesel Stage V 3 cylinders - 1318 cc
Transmission: Hydrostatic 4WD - Low - Medium - High
Weight: 1035 Kg
Capacity: 900 Kg
SRX 8900 R
Articulated, Reversible Vineyard & Orchard Tractor
Power: 54.6 kW / 74.2 hp - 2400 rpm
Engine: KUBOTA - 4 Cylinders - 16 Valves - TURBO Stage 5 - Common rail - 3769 CC
Transmission: 32-speed synchronized gearbox: 16 forward + 16 reverse gears with synchronized shuttle
Weight: With roll bar (Kg): 2145 to 2345 | With AIR cab (Kg): 2335 to 2535
Capacity: 2400 (Kg)

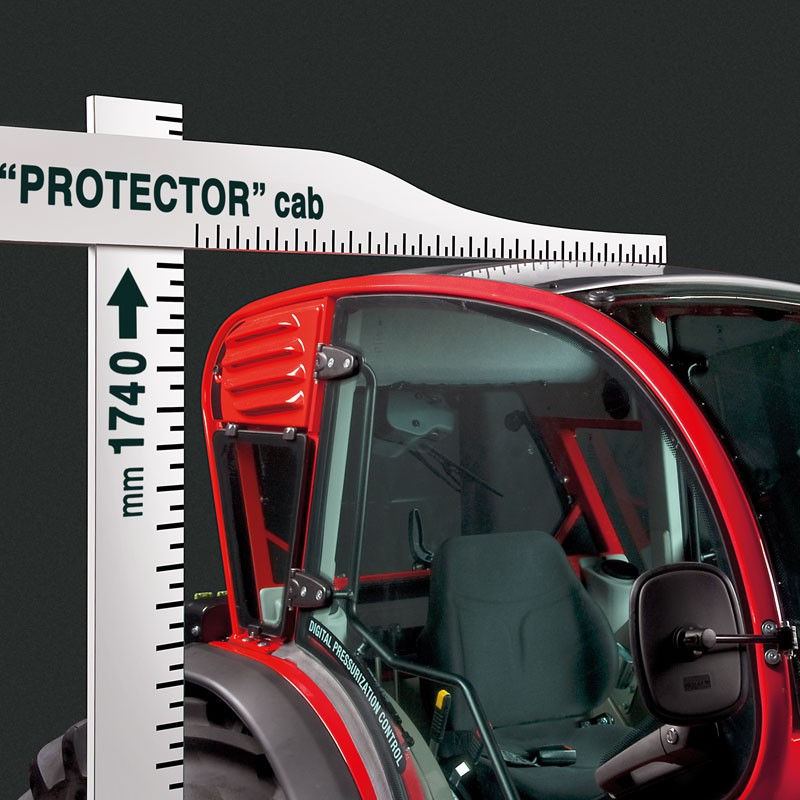

TGF 8900 R
Super Low-profile cab with very low center of gravity
Power: 54.6 kW / 74.2 hp - 2400 rpm
Engine: KUBOTA - 4 Cylinders - 16 Valves - TURBO Stage 5 Common rail - 3769 CC
Transmission: 32-speed synchronized gearbox: 16 forward + 16 reverse gears with synchronized shuttle
Weight: With roll bar (Kg): 2230 to 2555 | With PROTECTOR cab (Kg): 2360 to 2585

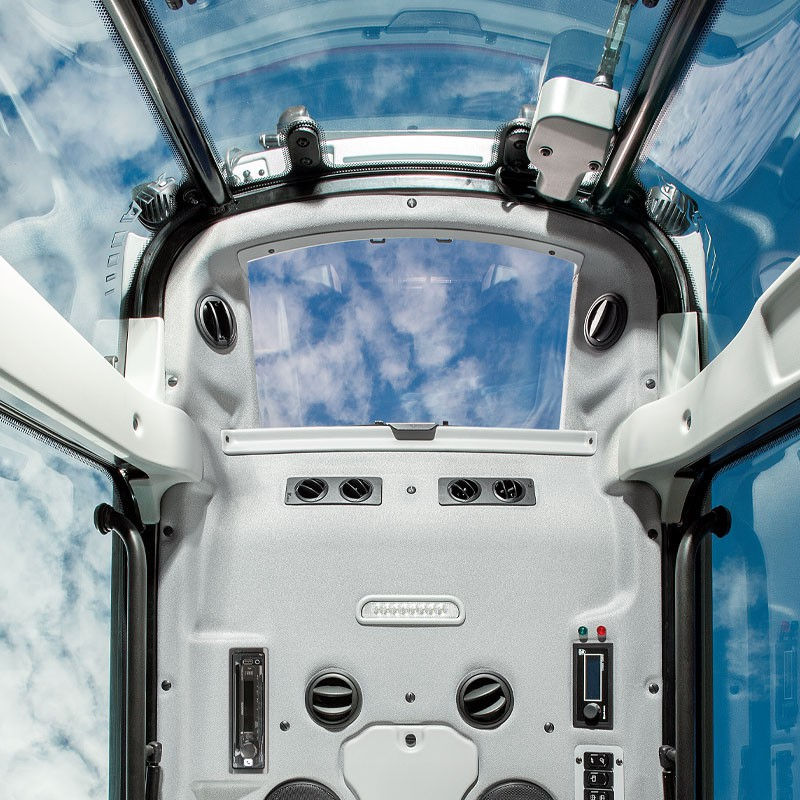

The
Best
Cabs
Stability, Maneuverability, Versatility
ACTIO™, the AC Full Chassis Oscillation, consisting of a solid cast-iron frame fixed to the axles and housing the tractor transmission, has a central pivot allowing longitudinal oscillation of up to 15 degrees. The two halves of the tractor follow the contour of the terrain independently, assuring stability and traction at all times. The constant grip of the tires ensures all the engine power is transferred to the ground, increasing performance and safety. With the ACTIO™ chassis, the engine overhangs the frame to achieve a low center of gravity and a weight distribution of 60% on the front axle and 40% on the rear. However, when an implement is attached to the rear linkage, the weight is distributed equally, with 50% on each axle.
Multi Control Joystick
The JMC™ proportional joystick (optional) has been developed in accordance with innovative design criteria to improve ergonomics and flexibility and to provide a practical means of controlling the lift and front and rear hydraulic couplers. It also allows the operator to proportionally control the flow of oil to the hydraulic couplers and the lift, thereby ensuring total control of the speed and movement of implements, as well as the raising and lowering of the lift. The result is absolute working precision.
The flow control of the hydraulic coupler with continuous flow controls the operation and speed of the hydraulic motors.
Thanks to the rate of drop control, you can set the
maximum implement lowering speed without affecting the raising speed.
Flexibility to adapt to different types of application is guaranteed by the possibility to change the control functions assigned to the buttons.
Damping
The Damping system, when activated, compensates for stresses transmitted from the mounted implements, thereby increasing comfort while protecting both driver and machine from possible harm.
Stability at all times
